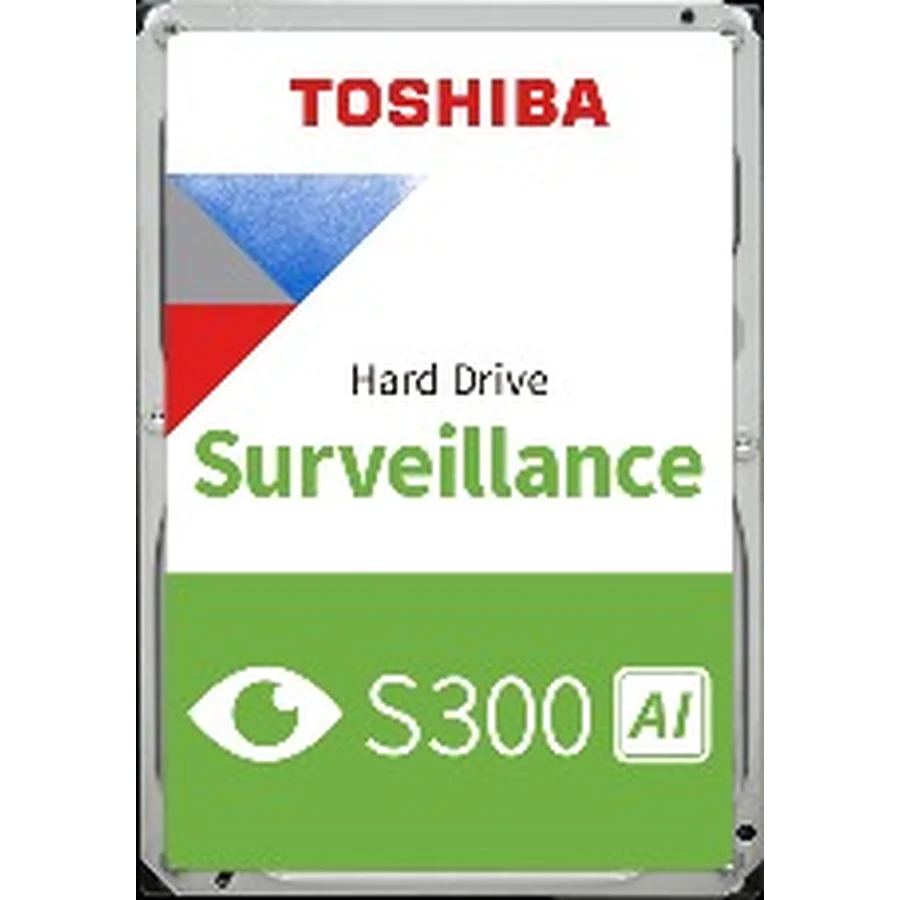

Toshiba S300 AI Surveillance Hard Drives in Oman
Enterprise-grade drives for recorders running analytics alongside recording. 8 TB to 24 TB, helium-sealed from 14 TB.
- 550 TB/yr workload
- 32 AI streams
- 64 cameras
- 24 bays
- 5-year warranty
An analytics recorder breaks the assumption every surveillance drive is built on
Surveillance storage is engineered for sequential writing, because that is what recording is. Add face recognition or plate matching and the drive is suddenly doing random reads against the same platters it is writing to, continuously, with no idle window. That mixed pattern is where conventional surveillance drives start dropping frames.
OptiFrame AI is Toshiba’s firmware answer, tuned for random access performance under AI load rather than pure sequential throughput. The range is rated to sustain 32 AI streams alongside 64 camera streams.
Elite Infotech supplies S300 AI across Oman for AI recorders, analytics servers and large multi-bay RAID surveillance deployments.
What S300 AI adds over S300 Pro
Nearly double the workload rating
Against 300 TB per year on S300 Pro and 180 TB on standard S300. On a 64-camera 4K estate, S300 Pro is at its rating inside a year.
A tenfold better read error rate
Against 1 per 1014 on both S300 and S300 Pro. During a RAID rebuild the array reads every sector on every surviving drive, so an order of magnitude on unrecoverable read errors is the difference between a rebuild that finishes and one that fails partway.
A larger buffer on higher capacities
14 TB and above carry 1,024 MiB against 512 MiB on S300 Pro. Buffer size matters disproportionately under mixed read and write load, which is precisely the AI workload.
Enterprise MTTF
2.5 million hours on the helium models and 2.0 million on the air-filled 8 and 10 TB, against 1.2 million on S300 Pro. This is an enterprise drive in a surveillance jacket.
Capacity headroom
Against 10 TB on S300 Pro. On a long-retention site this is the difference between one chassis and two.
AI streams rated
Neither S300 nor S300 Pro carries an AI stream rating at all. For a recorder running analytics, this is the only line in the Toshiba range that is specified for the job.
S300 AI capacities available in Oman
| Capacity | Model | Buffer | Design | MTTF | Sustained transfer |
|---|---|---|---|---|---|
| 24 TB | MG11ACA24TE-V | 1,024 MiB | Helium | 2.5M hrs | Up to 309 MB/s |
| 22 TB | MG11ACA22TE-V | 1,024 MiB | Helium | 2.5M hrs | Up to 299 MB/s |
| 20 TB | MG11ACA20TE-V | 1,024 MiB | Helium | 2.5M hrs | Up to 295 MB/s |
| 18 TB | MG11ACA18TE-V | 1,024 MiB | Helium | 2.5M hrs | Up to 295 MB/s |
| 16 TB | MG11ACA16TE-V | 1,024 MiB | Helium | 2.5M hrs | Up to 295 MB/s |
| 14 TB | MG11ACA14TE-V | 1,024 MiB | Helium | 2.5M hrs | Up to 295 MB/s |
| 10 TB | MG10ADA10TE-V | 512 MiB | Air | 2.0M hrs | Up to 281 MB/s |
| 8 TB | MG10ADA800E-V | 512 MiB | Air | 2.0M hrs | Up to 281 MB/s |
Note the model numbering
S300 AI drives carry MG-series part numbers with a -V suffix, because they are enterprise MG platforms with surveillance firmware. That is a fair reflection of what they are, and a useful thing to point out to a client questioning the price against a standard S300.
Specifications common to the range
| Specification | Value |
|---|---|
| Interface | SATA 6.0 Gb/s |
| Form factor | 3.5-inch |
| Recording technology | CMR |
| Sector size | 512e |
| Spindle speed | 7,200 RPM |
| Firmware | OptiFrame AI |
| Cameras supported | Up to 64 |
| AI streams supported | Up to 32 |
| Drive bays supported | Up to 24 |
| Workload rating | 550 TB/year |
| Read error rate | 1 per 1015 |
| Load/unload cycles | 600,000 |
| RV and shock sensors | Fitted |
| Operating temperature | 5–60°C surface |
| Dimensions | 147 × 101.85 × 26.1 mm |
| Limited warranty | 5 years |
Power draw
Approximately 7.0 to 8.1 W operating on the helium models and 8.5 to 9.6 W on the air-filled 10 TB, with active idle from 3.66 W. The helium drives are both larger and cooler, which is the whole argument for helium at density.
Where S300 AI is specified in Oman
For recorder selection, channel counts and retention sizing, see Dahua NVR and storage systems in Oman.
- Recorders running face recognition, ANPR, people counting or perimeter detection
- AI video analytics servers and VMS platforms managing multi-site estates
- Multi-bay RAID surveillance storage above 8 bays
- Government, defence and banking sites on 60 to 90 day retention
- Oil, gas and industrial perimeter monitoring with thermal or analytics layers
- Any deployment where a failed RAID rebuild is not an acceptable outcome
Frequently asked questions
What is OptiFrame AI?
Toshiba’s surveillance firmware tuned for the mixed sequential-write and random-read pattern that AI analytics create, rather than for pure sequential throughput. It is the reason S300 AI sustains analytics load where a standard surveillance drive drops frames.
How many AI streams does S300 AI support?
Up to 32 AI streams alongside up to 64 camera streams. Actual capacity varies with resolution, codec and which analytics the recorder is running.
Why do S300 AI drives have MG part numbers?

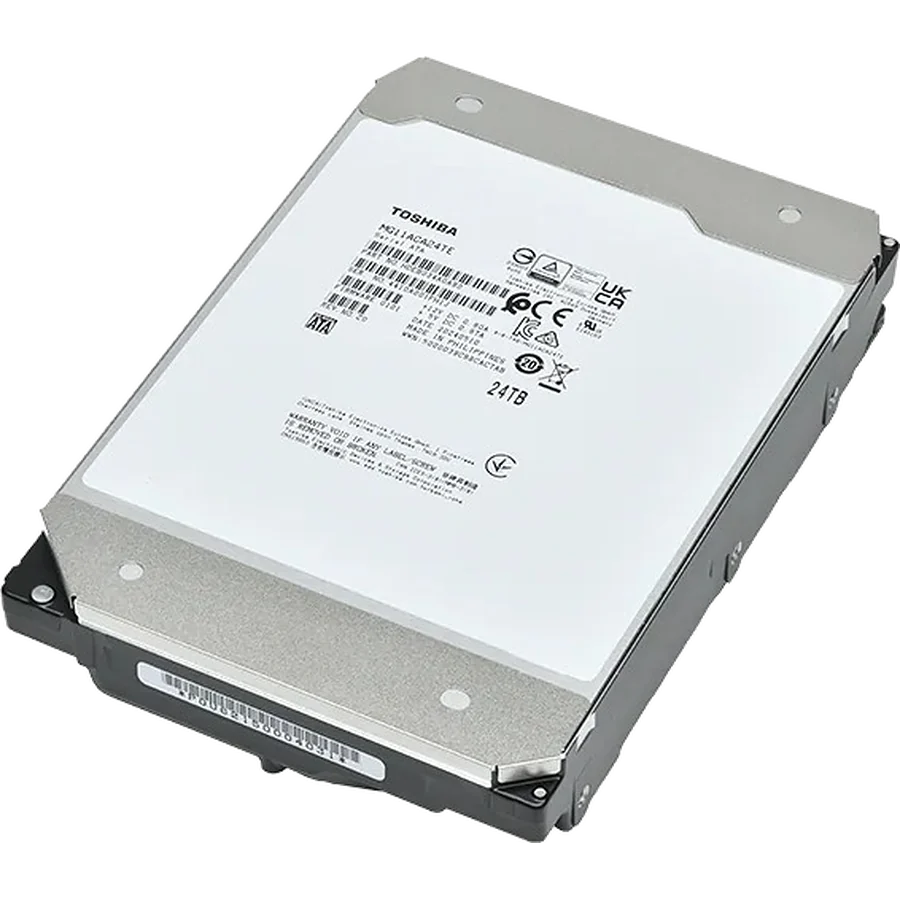

Because they are built on Toshiba’s enterprise MG platforms with surveillance firmware and a -V suffix. The 14 TB and above use the MG11 platform and the 8 to 10 TB use MG10-D. It is an enterprise drive specified for surveillance duty.
How does S300 AI compare with Seagate SkyHawk AI and WD Purple Pro?
All three are rated at 550 TB per year with 32 AI streams and 64 cameras, and all three carry five years. SkyHawk AI reaches 32 TB against 24 TB on S300 AI. The practical differentiators are availability against your delivery date and whether you are standardising an existing estate. We stock all three.
Which capacities are helium-sealed?
14 TB and above. These carry a 2.5 million hour MTTF and a 1 GiB buffer, against 2.0 million hours and 512 MiB on the air-filled 8 and 10 TB models.
What warranty applies?
Five years through authorised distribution with regional support.
Request S300 AI Stock and Pricing
Share your camera count, the analytics running on the recorder and your retention target. We confirm capacity, model and lead time within 24 hours.
